CAD Data Exchange

What should you consider when starting a CAD Data Exchange project?

This is an attempt to help people highlight, and then side-step, common problems that may occur during their data exchange lifecycle.

Data Exchange and the supply chain

CAD data exchange is the term usually applied to the movement of 3D design data between collaborating design/engineering/manufacturing companies. It can be considered like this; if the hierarchy of CAD data exchange is a triangle with an OEM at the top, Tier 1 suppliers at the next layer, sub contractors for the top tier suppliers below that, the flow of CAD DATA Exchange can be viewed as a bi-directional stream flowing from the top to the bottom and vice versa.

Data-Exchange

However, although the data flow can be described as a bi-directional stream, the content of the data changes. The data that moves between OEM and top tier supplier is not normally the same as that which moves between top tier supplier and the subcontractors below. Typically, the data that goes between OEM and top tier supplier is very large in size and complex. It could be native CAD data, it could be STEP or it could be a visualisation format such as JT.

The engineering at the bottom end of the supply chain includes things like tool design and manufacture, tool holding design and manufacture, and the design and manufacture of smaller components that are integral to the component that is created at top tier supplier level. These items are important because they are often on the delivery time critical path and the optimisation of CAD data exchange processes at this level is highly desirable.



How efficient are existing CAD Data Exchange and CAD Conversion processes?

One of the characteristics of CAD data exchange has been that special skills and expertise are necessary to enable things to happen. In some companies there are people who are dedicated to the role of CAD data exchange. Like most other things, CAD data exchange is at its most efficient where processes can be automated and dependency of key staff can be minimized. If CAD data exchange can take place at off peak hours, and run in a lights out environment, load sharing across available resources there are savings to be made. Automating the creation of CAD data exchange audit trails can add further value.



More and more different types of CAD data forces CAD Data Exchange

As if the complexities of CAD data exchange between collaborating companies were not a sufficient challenge to the design/manufacturing industries, there is often a significant internal overhead. Increasingly companies, especially those in the automotive and aerospace supply chains, have more than one CAD system. Having two active systems is quite common and it is not unusual to find three. At the time of writing these are normally CATIA, NX and Creo but it is also possible that CADDS is still in place and even if not active as a design system, a large legacy of CADDS data may still be present.

Data-Exchange-Files

It could be argued that the presence of two or three different types of CAD system enables interoperability with more customers without the need to translate data, but it simply moves the point at which the CAD data translation takes place.  A project can easily overflow the resources that are available and if the resource is a CAD system it makes sense to overflow from one CAD system to another.

CAD data exchange or interoperability or whatever it gets called next, is not a straightforward process. This is an attempt to help people highlight, and then side-step, common problems that may occur during their data exchange lifecycle. It isn’t intended to be the definitive guide to data exchange, but some hints and tips built up from practical experience and knowledge of the data exchange field.



Know what you expect to receive and check it when you get it

If you’re going to have to import or translate ‘foreign’ data it helps if you know what you are going to receive. It gives you the chance to plan, and to ensure that when it does arrive you’ve got enough time, and the appropriate translation tools for the job.

Data-Exchange

Can you view it? Can you see if it is an assembly rather than a single part? Does it contain colours and other attribute data you might need? How large are the files? Have you worked with data from this person and this source before? Does it look like business as usual or is this something new?



Understand what you have received

Is it the right file type? Is it a compressed file? Is it a native CAD file or a STEP file? Don’t risk the embarrassment of calling a help desk to say that a translator doesn’t work when it is designed to translate a STEP file and you have been feeding it a native CAD file. Simple things can often get overlooked, for example make sure that you have checked the file extension and that any zipped data has been unzipped! If you have a regular data exchange requirement it’s a good idea to define the process so that both the sender and recipient work in the same way every time data is exchanged. If your interoperability work is such that you receive different files from different people, it is still worth trying to put a definition on the process because it may save misunderstanding, and so save time and effort.

Treat incoming data with care

Almost all data that is sent between companies for collaborative work contains intellectual property of one, or both, companies. Such data should be treated with care. Electronic files should be stored in secure areas and not left attached to a memo in an email in-box or in a directory on a public FTP site. Ideally there should be a process that receives the data-and before any validation, records what has arrived, puts the data in a secure place, and tells the sender that it has been safely received. A similar process should be in place for data that is received on physical media such as a USB drive or DVD. It should not be left in its envelope lying about on a desk it should be placed in a secure media store.

Incoming-cad-data



Only translate what you need

It is not unusual to receive more data than is needed for the job. An extreme example might be a manufacturer of hinges receiving half a car body in order to ensure correct placement and fit of door hinges! It’s not always as bad as that, but it happens. The ideal situation would have been to have had sufficient dialogue with the sending organisation beforehand to agree exactly what data is needed and to send just that.

However, sometimes that can’t happen. One problem this can create is just how to handle very large files. Receiving a big CAD file that is not directly compatible with your own CAD system is not good. How big is big? CAD files of fifty or a hundred megabytes are not infrequently found, and IGES or STEP files can sometimes be gigabytes in size! It’s a fact that the bigger the file the more likelihood there is of a translation failure – the machine you are doing the translation on may run out of memory. It is rare to need to work with that volume of data, and if sending files that big can be avoided, it helps.

Configuring

If you find yourself on the receiving end of such a file there are several things you can do. You could ask the sender to provide you with an assembly as a set of sub-assemblies - but this might be commercially sensitive and pass negative signs to the sender, and so may not be practical. The sender may simply not be able to disassemble the file or remove parts of the file to make things easier for you. Perhaps this is the last resort.

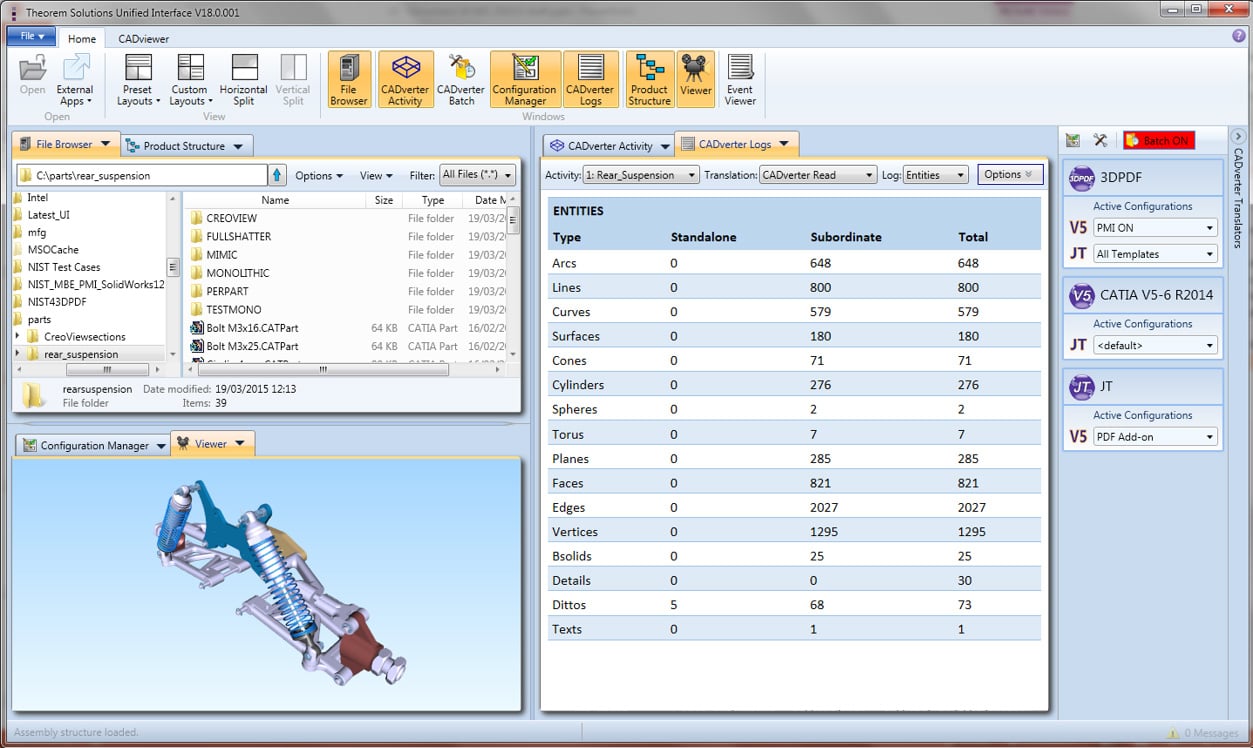

Filtering

If you are very familiar with the translation tool you are using you may find that you can translate just the geometry that you need. It may be, for example, that a layering convention has been used and you can translate the layers that you want- or exclude the layers you don’t. It may be that the geometry that you want is surface geometry, so your solution might be to translate just the surfaces. In short, knowing the capabilities of your translation tools can help you manage large files, save time and help get the job done.

Export



How do you know if you've succeeded?

In data exchange, if the translator only gives limited warnings and it produces a file we generally assume success. It can be dangerous to make this assumption. At this stage all that can be known for sure is that a file has been created and perhaps can be read into the target CAD system. It is not possible to say from what has happened so far that it has produced an equivalent CAD model to the original. There are different ways to validate files and they all have their strengths and weaknesses. We might have a perfectly sound model but it may not be the same as the original. We could ask the sender for mass property details of the original and make some comparisons but even if they appear the same, the shape could be different. Sometimes visual inspection of the source model, and just making a visual comparison with the destination model is sufficient to see a problem, however not seeing a difference does not mean that one doesn’t exist. Validation is a difficult area.

Validating

Fortunately, we have now reached the stage where most translators work most of the time and one way or another we seem to be able to exchange data without having too many problems of this sort- especially where we are just exchanging a few files every now and then. The true size of this problem is not clear.

The necessity for validation varies depending on the intended use of the translated data. The question of accuracy and completeness of a translation becomes very important where complex shapes are used to create expensive tooling, or when we have dozens of files, most of which we will not check visually. It is even more of an issue in migration projects where tens of thousands of files may be translated and are required for future use, not simply for archive purposes. Manual checking would be prohibitively expensive, in terms of both time and money, and so automated procedures need to be in place. Fortunately, there are solutions, and while this post is not a suitable place to describe them, Theorem can provide technical and ‘use case’ detail for those who would like to enquire directly.



What to do when a translation fails

Unless the error message generated during the failure gives a definitive explanation of the problem, you will probably have to try several things.

Perhaps the first thing to do is to put a test file through the translator. If a file known to be good goes through without failing, this will indicate the problem as being in the source file. If, on the other hand, a file that is known to normally translate successfully fails then there are probably issues with the translator. Maybe a licensing issue, or a permissions issue, or perhaps some paths have changed. These kinds of problem are normally solved with a little time and effort.

If the test file goes through the translator with no problems, then the challenge is with the incoming file. Your first decision is whether you are going to try to resolve this yourself or if you are going to pass it back to the person who sent it, or even seek help from your translator supplier.

Assuming that you decide to resolve the issue yourself, here’s where you might start.

If you have a tool which will display the source data, use it to see if the source file looks wholesome. Gaps between surfaces, or missing surfaces may be obvious and could be an indicator that you have a bad file.

Check the file size and ask the person who sent it to confirm what it should be. The process of copying it in the first instance may have caused a problem.

Log-File

If you understand the log files created by your translator, examining these will provide some clues. Seeing just what the translator was doing when it failed can sometimes point out a problem in the source file that could be avoided by selectively translating layers or entity types. In actual practice the people who can read and understand translator log files are a rare breed and you would be forgiven if you didn’t even want to step into this realm.

Another option is to try to translate the file into a different format. If you have more than one translator you may find that a troublesome file will go into a different format without a problem. That only helps of course if you can then translate that file into your desired format, and of course nobody knows what might have got lost in the course of more than one translation. However, sometimes it works.

Your translator company will normally have tools to investigate the source file and so should be able to tell you if that is the reason for the problem.

Another option is to contact the support centre of your translator supplier; you have paid maintenance haven’t you? The only thing that should now prevent you from creating a file in the format you want is if there is a fault in the source file, and if that is the case you have little option other than to go back to the person who sent the file in the first place.



Send only high quality data

If you want your business partners to successfully import the files you send them make sure you send the best quality files that you can. Run them through whatever ‘checking’ routine there is in your design software. If there are errors – even if they don’t make any difference in your own CAD package, they might be showstoppers in translation. For example, if your CAD package creates solids, even if there are gaps in the surfaces, there is no guarantee that a translated part will be read into another package and represent the data as solid. If solids are important, send solids, not surfaces with gaps.

CATIA%-Suspension

This kind of problem has given rise to some translators that will ‘fix’ problems like this, but there are several potential issues with this approach. For example, if the fix requires a change of shape does it constitute a design change and if it does should it be allowed to happen? The very best interoperability works with high quality source files and then the issue of design changes doesn’t arise.

Know what the data will be used for and send lightweight data if possible

There are many forms in which data can be exchanged, including a native CAD model, IGES, STEP and lightweight formats such as JT, 3DXML, Creo View or 3D PDF, etc. In fact, if you know that the end objective can be achieved by sending lightweight data then this is the best method to use. Creation of lightweight data is quick, results in small files and rarely fails to be read into the destination CAD system.

If you have the option of creating tessellated data it can be used for packaging, rapid prototyping, including the use of stereo lithography, and approximate clash detection. If that’s all that’s wanted, just send tessellated data. However, lightweight formats should not be mistaken as being made up only of tessellated data; some lightweight formats do not contain tessellated data. They can include accurate BREP geometry and can therefore be used for almost anything that could have been achieved with the original CAD file.

Most importantly, interoperability via lightweight data formats is one of the best ways of limiting the transfer of IP to the outside world. It could therefore be argued to be technically sufficient and commercially ideal.



Send only the data the recipient needs

On a one to one data exchange it is possible to know precisely the data a recipient will need and to send just that, in whatever format is best. This is much more difficult where a project calls for project data to be sent, for example to a number of suppliers, some of whom might be designing in context and others who may be making tools for body shapes, or creating robotic work cells. In these cases the ideal solution is to send each supplier the data they need in the format they require, but unless this process can be automated it can be costly in terms of time and effort. The sending of multi-purpose project data is one of the reasons that such large files are sometimes transmitted. However, it is good practice where possible to send only what your supplier needs.





What about features and history?

The question whether or not to send data with features and history is a difficult one and may well end up being a matter of company policy. There is no doubt that sending models with features and history is the most likely way of compromising company confidential information and IP.

The trade-off is that it should provide the recipient with a fully modifiable data set. In practice this isn’t so, because so far Feature and History translation has not been fully effective, and quite often it requires significant operator interaction before the model is complete. Some of the latest modelling techniques which enable direct editing of features may prove to be so effective in allowing modification of translated geometry that there is no value in attempting to translate history at all.



14

Conclusion

CAD data exchange is a feature of modern collaborative engineering.

Most, if not all, of the suggestions here are known to most, if not all, of the people who find that CAD data exchange is part of their work. The intention has not been to list mathematical or technical issues that influence CAD data exchange but rather to bring to mind again many of the known but perhaps forgotten things that can be done to improve interoperability.
