New Product Release: CATIA V5 to NX

Posted on
1 min

Theorem Solutions are pleased to announce the release of their latest CADverter for CATIA V5 > NX users.

Integrated within the CATIA application, V24.0 supports all revisions of from CATIA V5-6R2018 to V5-6R2021 and NX 12, NX 1899, NX 1926 and NX 1953.

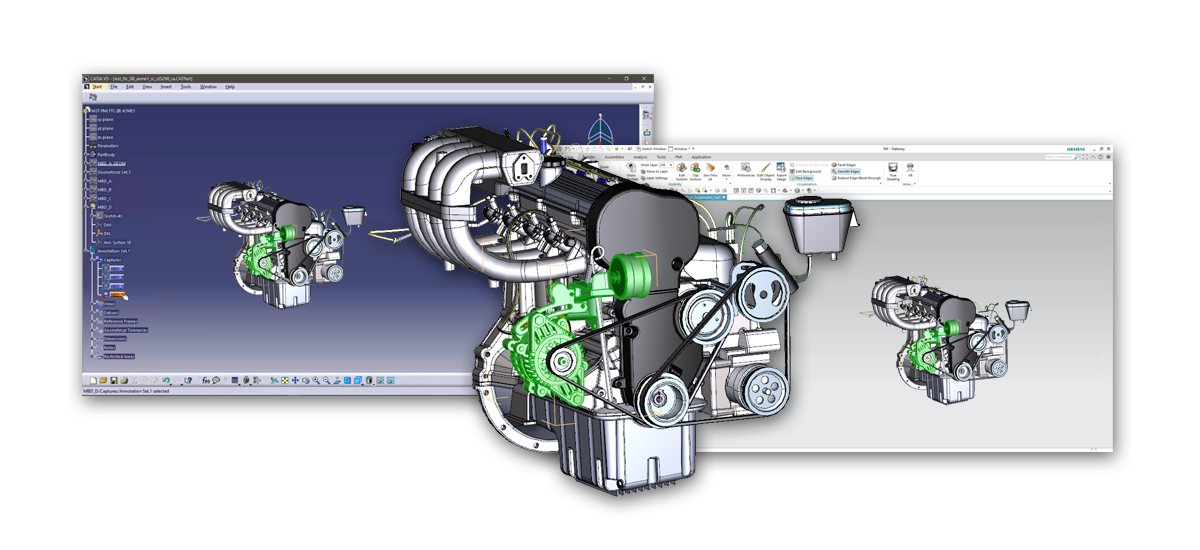

The CATIA V5 to NX translator is a direct database converter between CATIA V5 and NX. It enables the user to convert all forms of 3D mechanical design geometry, as well as assembly and attribute information, between these two systems.

The translator can be purchased as a uni-directional, CATIA V5 to NX, or NX to CATIA V5 product, or as a bi-directional product. It can be used interactively or in a batch mode, from a standard CADverter Unified Interface.

The aim of the CADverter is to allow the user to translate any data that they have held in a CATIA format and make it useable in NX for various use cases, whether the downstream user wants a lightweight reference part to model around, or a precise copy of the data translated to allow measurement and editing of translated models.

CADverter products translate assembly structure, geometry, attributes and, where available, 3D Product Manufacturing Information (PMI) and Metadata between CATIA V5 and NX, supporting Model Based Definition (MBD) processes.

Our solutions are built with development tools and APIs supplied and are supported by the major CAD vendors that we have strategic partnerships with. This means we do not reverse engineer and can provide you with a robust application that offers full control over data preparation and optimization for the target formats.

Theorem’s strategic partnerships with Dassault Systemes and Siemens ensures that there is parallel development between the latest releases of CATIA V5 and NX, and our CADverter products, allowing us to continue to provide data solutions for the CAD community.
