For those that need to work with, or share, visualization data as part of design and manufacturing processes, the Theorem Lightweight 3D suite of products offers direct translation of 3D data for the purpose of visualization.
Our Lightweight 3D brand supports lightweight data formats with a focus specifically on the direct translation of 3D CAD data from mechanical CAD systems for the purpose of visualization, enabling users to work with and share data directly between different CAD and Visualization applications and are aimed at creating visualization data for users of digital mock-up, desktop and tablet viewing applications.
V24.1 now supports up to and including CATIA V5-6R2016-2021 and Creo View 7.1.

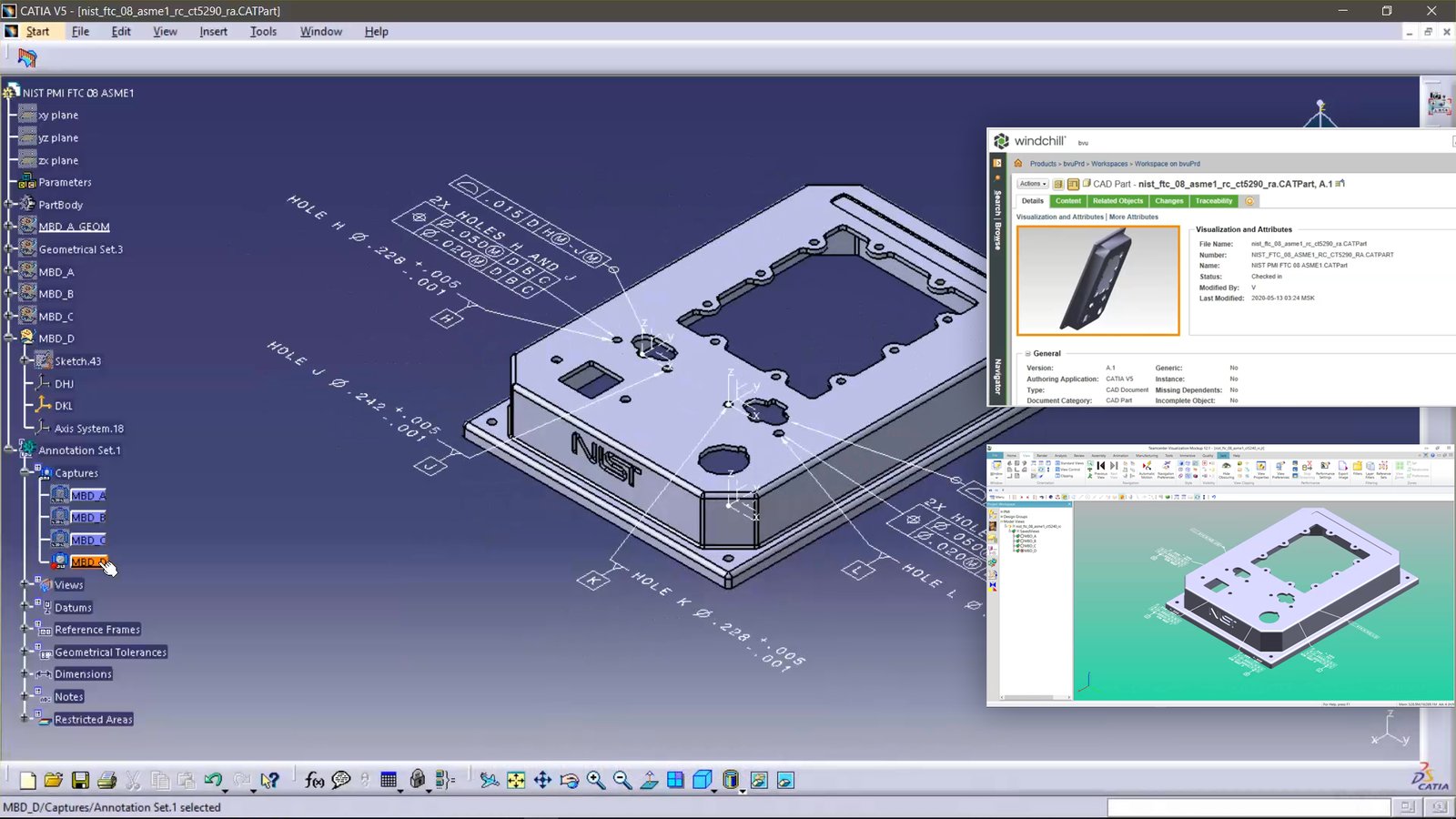

This solution can be integrated into WindChill, allowing CATIA V5 managed data to be published and visualized on demand. As the Creo View data output is then synchronized with the CATIA source, an accurate up-to-date version of the design is always available, reducing costly errors.
The CATIA V5 to Creo View suite helps to secure Intellectual Property, but at the same time supports a rich enough set of design data intelligence so that suppliers have all of the information required to complete their job.
Our solutions are built with development tools and APIs supplied and are supported by the major CAD vendors that we have strategic partnerships with. This means we do not reverse engineer and can provide you with a robust application that offers full control over data preparation and optimization for the target formats.
Theorem’s strategic partnerships with Dassault Systemes and PTC ensures that there is parallel development between the latest releases of CATIA V5 and Creo View, and Theorem’s Lightweight 3D products, allowing Theorem to continue to provide data solutions for the CAD community.
